Double-blade cultivator

Double-blade cultivator

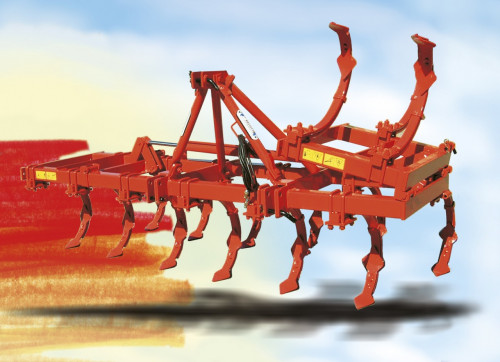

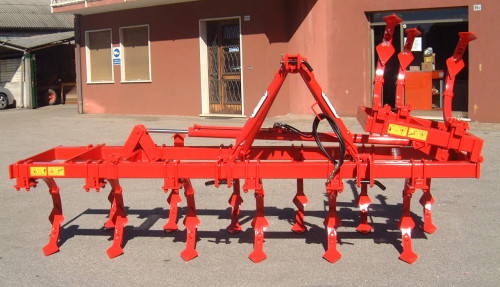

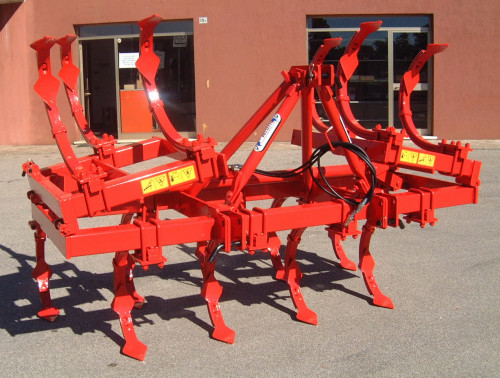

All ROSSETTO cultivators are built to optimize soil use and allow constant farming in every season.
The frame structure is solid and made of tested and certified materials. It features hardened and tempered steel anchors thickness mm 25, 30, or 35, which are fully made in our factory: the anchors are set in 2 rows to break up large soil blocks and prevent clogging.
The "double spiral" tine with a square section has proven over time to give the best results when working topsoil layers.
Our continuous research to improve products led to a patent for a special "clamping" system for size 30 anchor: this system ensures high durability, better fatigue resistance and safety protection against breaking.

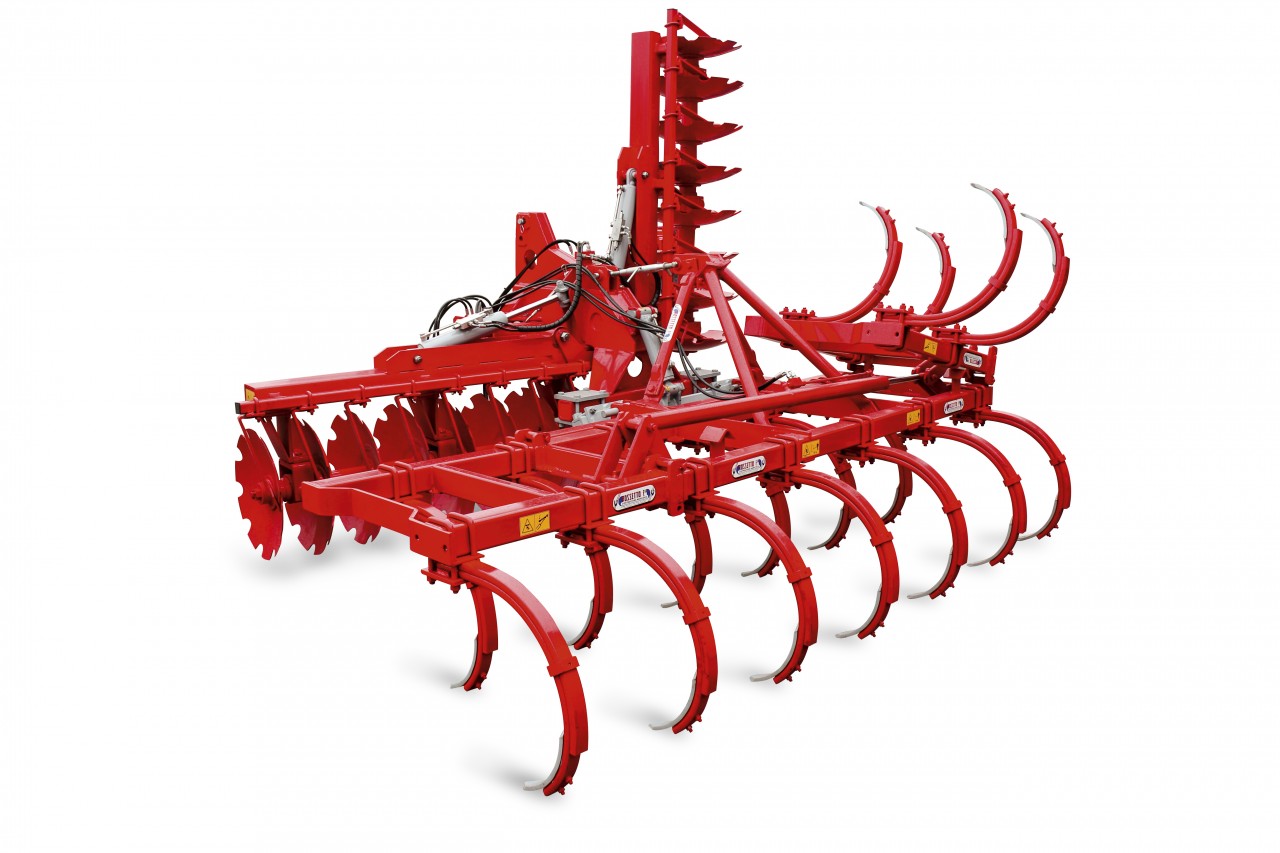

All cultivators can be fitted with a rear roller or a front disc harrow, as well as depth control tyres to adjust working depth.

Table
Type HP  Anchors no. Working width m
Two rows
CB/9 80/100 9 2,50
CB/11 100/130 11 3,00 folding to m 2,5
CB/13 120/140 13 3,50 folding to m 2,5
CB/15 140/160 15 4,00 folding to m 2,5
CB/17 180/220 17 4,50 folding to m 2,5
CB19 200/270 19 5,00 folding to m 2,5
Three rows
CB/11/3 90/120 11 2,50
CB/13/3 120/150 13 3,00 folding to m 2,5
CB/15/3 130/180 15 3,50 folding to m 2,5
CB/17/3 160/180 17 3,80 folding to m 2,5
CB/19/3 180/200 19 4,20 folding to m 2,5
CB/21/3 200/270 21 4,60 folding to m 2,5
CB/23/3 200/270 23 5,00 folding to m 2,5
CB/27/3 from 250 27 6,00 folding to m 3
CB/35/3 from 250 35 7,20 folding to m 3

We advise hydraulic folding for the models from  m 3.50
