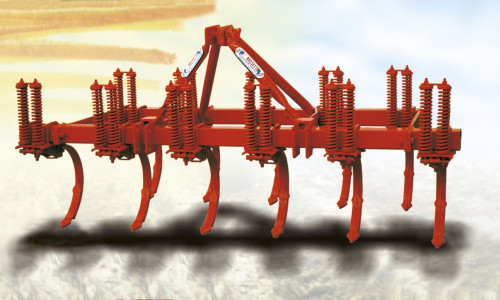

Double-blade one/two springs cultivator

Double-blade one/two springs cultivator

All ROSSETTO cultivators are built to optimize soil use and allow constant farming in every season.
The frame structure is solid and made of tested and certified materials. It features hardened and tempered steel anchors thickness mm 25, 30, or 35, which are fully made in our factory: the anchors are set in 3 rows to break up large soil blocks and prevent clogging.
The "double spiral" tine with a square section has proven over time to give the best results when working topsoil layers.
Our continuous research to improve products led to a patent for a special "clamping" system for size 30 anchor: this system ensures high durability, better fatigue resistance and safety protection against breaking.
All cultivators can be fitted with a rear roller or a front disc harrow, as well as depth control tyres to adjust working depth.
Table
Type HP Anchors no. Working width  m
Two rows
CB2/9 80/100 9 2,50
CB2/11 100/130 11 3,00 folding
Three rows
CB2/11/3 90/120 11 2,50
CB2/13/3 120/150 13 3,00 folding
CB2/15/3 130/180 15 3,50 folding
CB2/17/3 150/180 17 3,80 folding
CB2/19/3 170/200 19 4,40 folding

We advise hydraulic folding for the models from m 3.50
