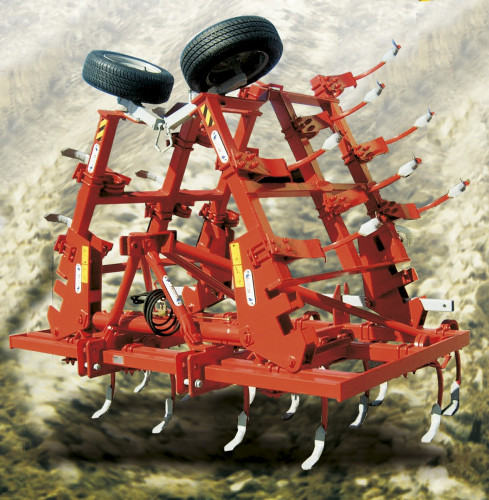

Three rows cultivator with vibrating square anchors

Three rows cultivator with vibrating square anchors

All ROSSETTO cultivators are built to optimize soil use and allow constant farming in every season.
The frame structure is solid and made of tested and certified materials. It features hardened and tempered steel anchors thickness mm 25, 30, or 35, which are fully made in our factory: the anchors are set in 3 rows to break up large soil blocks and prevent clogging.

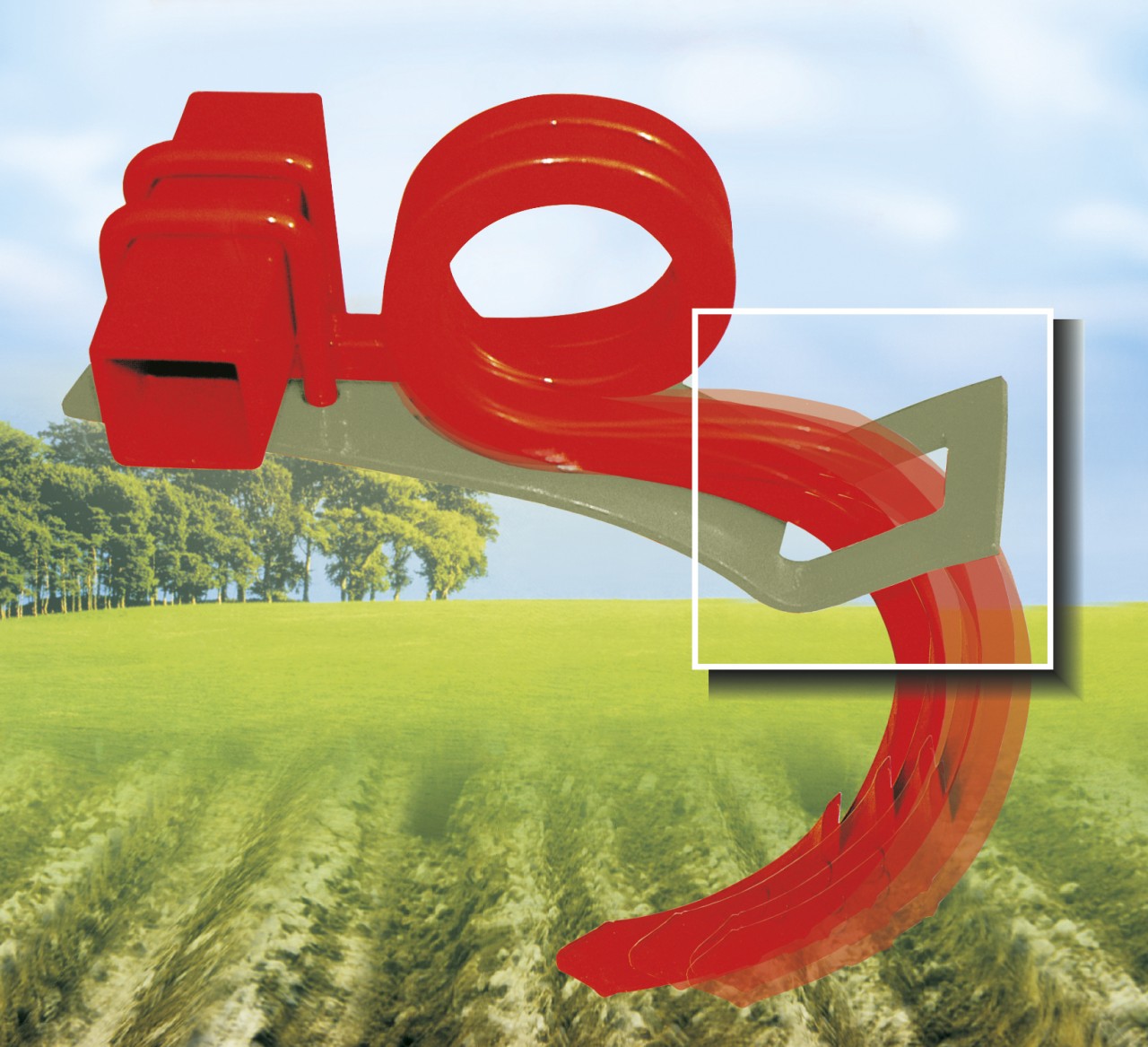

The "double spiral" tine with a square section has proven over time to give the best results when working topsoil layers.
Our continuous research to improve products led to a patent for a special "clamping" system for size 30 anchor: this system ensures high durability, better fatigue resistance and safety protection against breaking.
All cultivators can be fitted with a rear roller or a front disc harrow, as well as depth control wheels to adjust working depth.

Table
Type HP Anchors no. Working width m
CHQ25/13/3 70/80 13 2,50
CHQ25/15/3 80/90 15 3,00 folding to m 2,50
CHQ30/13/3 100/120 13 2,50
CHQ30/15/3 120/130 15 3,00 folding to m 2,50
CHQ30/17/3 130/160 17 3,50 folding to m 2,50
CHQ30/19/3 160/180 19 3,80 folding to m 2,50
CHQ30/21/3 180/220 21 4,20 folding to m 2,50
CHQ30/23/3 200/220 23 4,60 folding to m 2,50
CHQ30/25/3 200/220 25 5,00 folding to m 2,50
CHQ30/29/3 220/250 29 6,00 folding to m 3
CHQ30/37/3 250/270 37 7,20 folding to m 3
CHQ35/11/3 90/120 11 2,50
CHQ35/13/3 100/120 13 3,00 folding to m 2,50
CHQ35/15/3 150/180 15 3,5 folding to m 2,50
CHQ35/17/3 180/220 17 3,80 folding to m 2,50
CHQ35/19/3 220/270 19 4,20 folding to m 2,50
CHQ35/23/3 230/270 23 4,60 folding to m 2,50
CHQ35/25/3 250/270 25 5,00 folding to m 2,50
We advise hydraulic folding for the models from m 3,80
Anchor protection retainer available only for sec. 30
