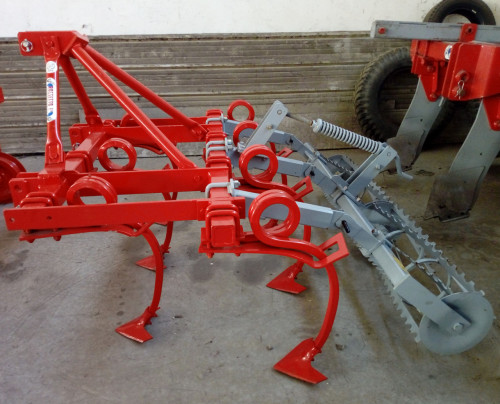

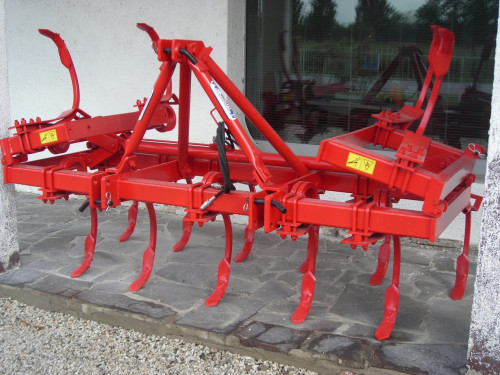

Two rows cultivator with vibrating square anchors

Two rows cultivator with vibrating square anchors

All ROSSETTO cultivators are built to optimize soil use and allow constant farming in every season.
The frame structure is solid and made of tested and certified materials. It features hardened and tempered steel anchors thickness mm 25, 30, or 35, which are fully made in our factory: the anchors are set in 2 rows to break up large soil blocks and prevent clogging.
The "double spiral" tine with a square section has proven over time to give the best results when working topsoil layers.
Our continuous research to improve products led to a patent for a special "clamping" system for size 30 anchor: this system ensures high durability, better fatigue resistance and safety protection against breaking.
All cultivators can be fitted with a rear roller or a front disc harrow, as well as depth control wheels to adjust working depth.
Table
Type HP  Anchors no. Working width m
CHQ25/7 20/40 7 1,70
CHQ25/9 40/50 9 2,00
CHQ25/11 45/60 11 2,50
CHQ30/7 45/55 7 1,70
CHQ30/9 60/70 9 2,00
CHQ30/11 80/100 11 2,50
CHQ30/13R 100/120 13 3,00 folding
CHQ30/15R 120/130 15 3,50 folding
CHQ30/17R 140/160 17 4,00 folding
CHQ30/19R 180/220 19 4,50 folding
CHQ30/21R 200/270 21 5,00 folding
CHQ35/9 70/80 9 2,50
CHQ35/11R 90/120 11 3,00 folding
*Hydraulic folding to m 2,50
We advise hydraulic folding for the models from m 3,50
Anchor protection retainer available only for sec. 30
