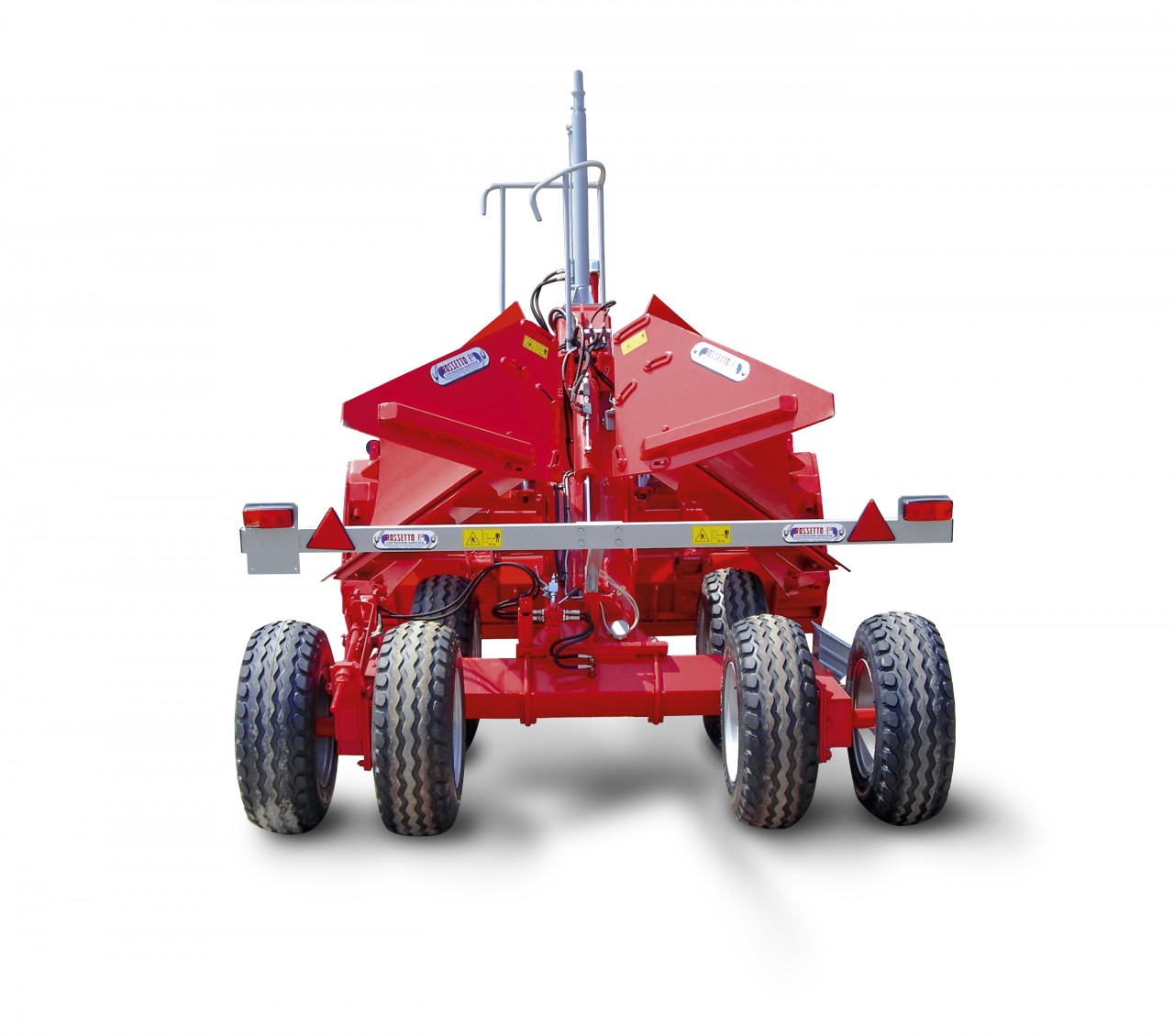

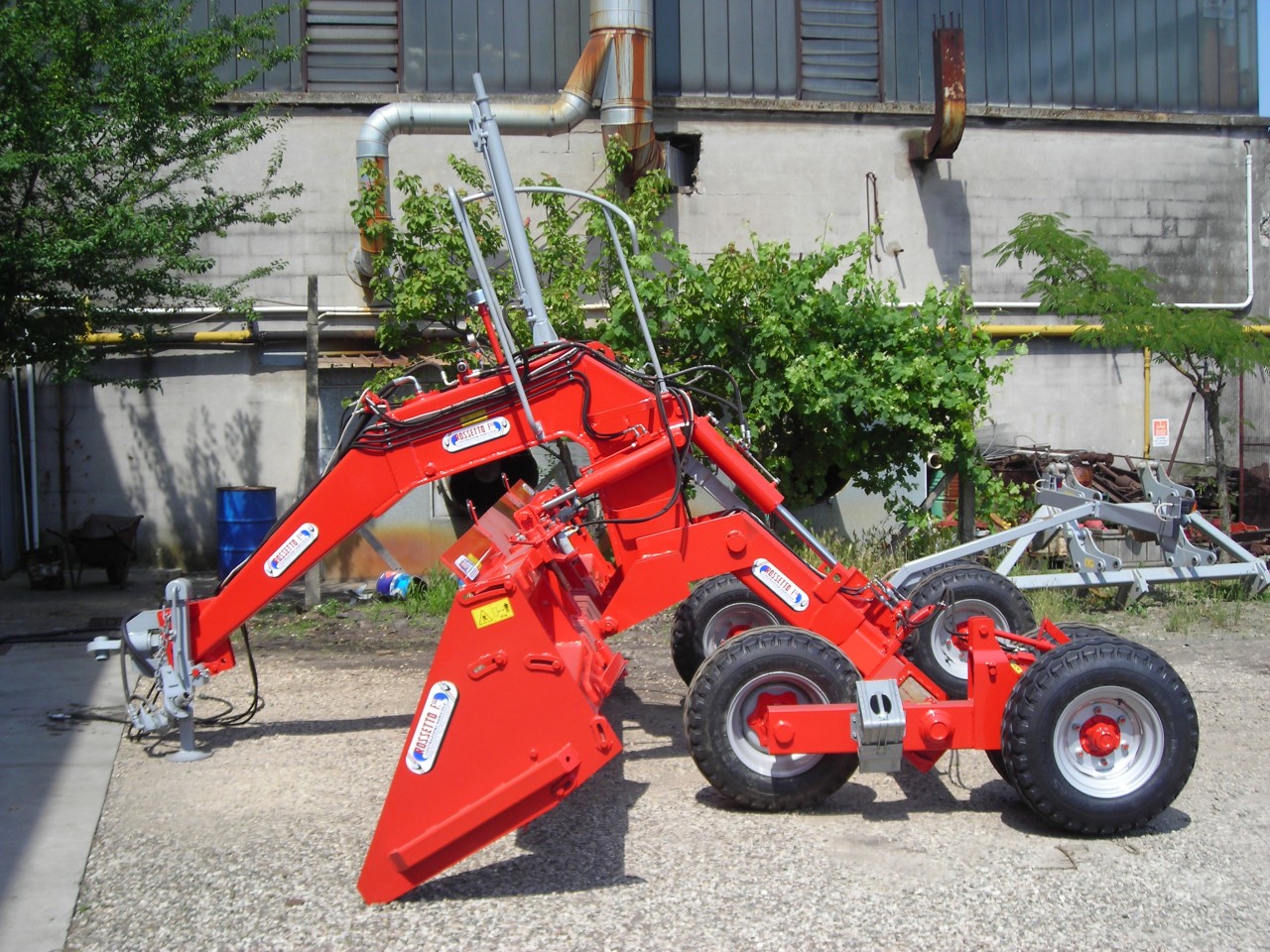

"MIDDLE" leveller blade

It is the ideal towed agricultural implement for soil leveling. Thanks to its sturdy structure made of pressed steel, it can move a large amount of soil by working and rolling it over on itself. This ensures high productivity in terms of time and power consumption.
E’ la macchina ideale per i lavori di rifinitura grazie alle dimensioni che consentono un’ottima manovrabilità.
The “media” leveling blade is entirely controlled by hydraulic equipment that allows all its movements. These include the horizontal and vertical tilt, forward and backward blade adjustment, closing of the side wings, and widening of the tyres. This widening keeps the leveler perfectly stable during high-speed finishing phases.
The combination with a laser system allows users to fully exploit the potential of the “media” leveling blade. This setup creates perfectly flat surfaces suitable for rice fields and surface-irrigated crops. However, a special hydraulic mechanism guarantees excellent functionality even without a laser.
The standard configuration includes full hydraulic controls, 6 tyres with a walking beam, a receiver-carrier jack with a numbered rod, and automatic latching of the side wings.


Table
Type Working width m HP
LMN/40 4,00* 100/130
LMN/45 4,50* 120/160
LMN/50 5,00* 170/190

* Hydraulic Folding to m 2,50
